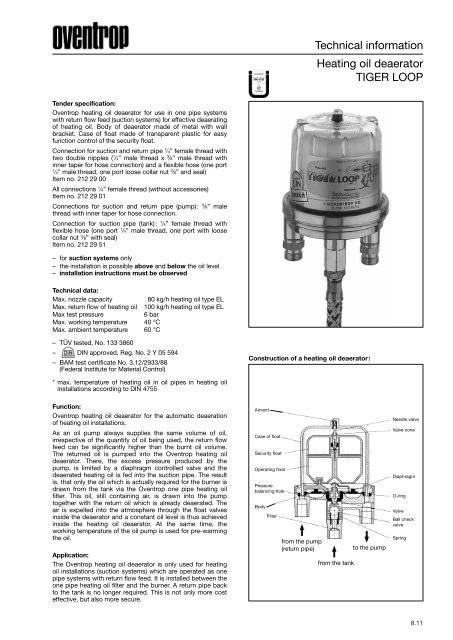

Technical Information Heating Oil Deaerator Tiger Loop - Oventrop

Suitable for oil and kerosene.

Tiger loop diagram. Do i need a preference relay? Installation was easy and their customer service technician was always available or would return my call. The most complicated part of the job, and that is where you need the oftec engineer is making another connection to the burner, which needs another flexi pipe.

Thank you very much indeed for responding. Eliminates potential leak hazard by eliminating the return line. During extremely cold winter weather oil.

Safely handles suction line air leaks Contact our representatives for a quote. The boiler is now around ten feet from the oil tank both on level ground to each other.

And, a solenoid valve will not help this problem. The second kind of bubbles are gases which come from dissolved vapors and volatiles that are drawn out of the oil when it is exposed to vacuum. Rpm 2850 bar 10 diagram 1 145.

Comes with exchangeable 15 micron filter. The bubbles drawn out of the oil rise to. The tiger loop can draw fuel from up to 30m away with a 10mm fuel line.

This tiger loop was the best addition to my oil fired boiler. Diagram 7 shows what is going on in the strainer chamber of the oil pump. Return oil pumped into tigerloop:

The actual plumbing to the tiger loop is simple. Firstly they come with detailed instructions. Preheats the oil for cleaner combustion.

It is strictly a problem caused by air bubbles. Want to install tiger loop to stop intermittent problem with air in heatin boilers oil pump. Fuel flow does not cease until the bubble has expanded back to its original size and nozzle line pressure has dropped to zero (diagram 3).

1 or 2 heating compatible In a pipe with a diameter of 1/4' (4.4 mm) length (a) of 49 feet (l5meter) and a nozzle capacity (b) of 2.6 gph (10 l/n), pipe resistance (c. This allows highly efficient combustion without dripping problems leading to soot build up.

We would like to show you a description here but the site won’t allow us. This allows the tank to be installed lower than the burner. It must be outside, not inside.

The higher the vacuum, the more bubbles produced. Tiger loops are simple things to fit. Also see oil burner manuals

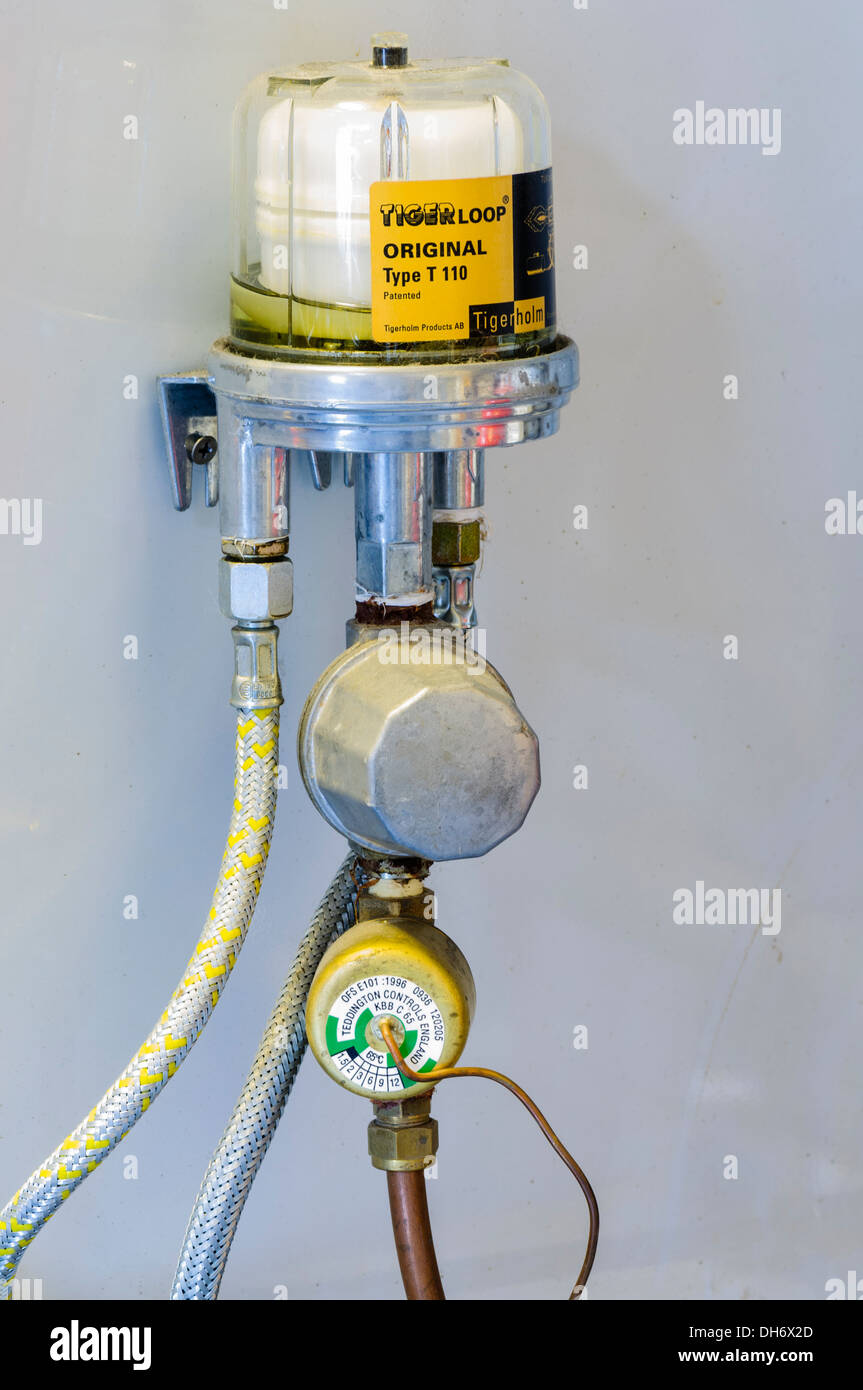

A tigerloop installation will achieve better fuel efficiency through lower oil consumption. Can i hook up both units to tiger loop? The tiger loop removes air from heating oil and is fitted on the outside wall of the property, between the tank and the pressure jet burner.
